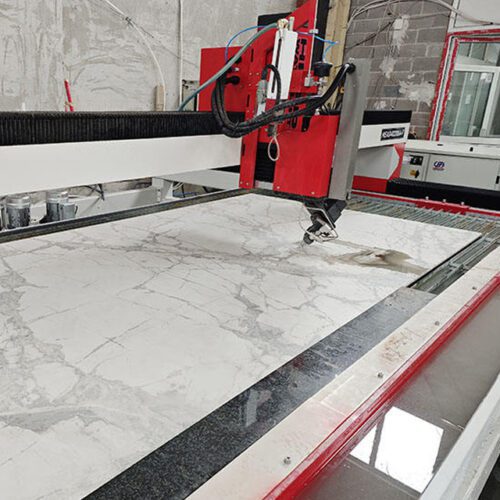

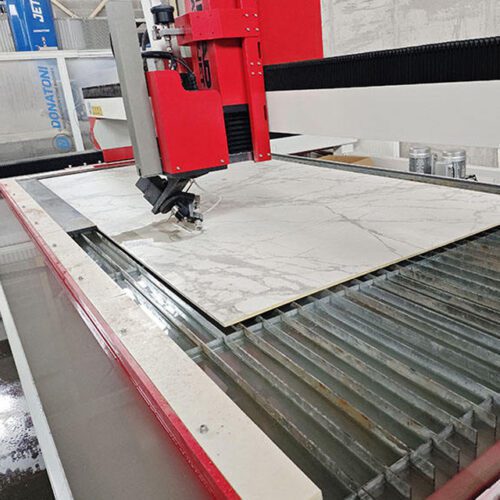

Macchina per il taglio a getto d'acqua
- Compact & Portable Design
- Quiet & Safe Operation System
- Integrated Intelligent Control
- High Precision & Long Durability
- Triple Protection & Cost Saving
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Important Parameters
| Parameter | Value |
| Voltage | 380 V |
| Number of Axes | 5 |
| Repeat Positioning Accuracy (mm) | ±0.003 |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Machinery Test Report | Available |
| Warranty Period | 1 Year |
| Video Factory Inspection | Available |
| Dimensions (L×W×H) | 1000*800*600 cm |
| Core Selling Point | High Precision |
| Cutting Accuracy (mm) | 0.1 |
| Weight (KG) | 6000 |
| Rated Power | 37KW |
| Application | Macchina per il taglio a getto d'acqua |
| Type | Water Jet Cutters |
| Keyword | 5 Axis Waterjet Cutting Machine |
Specifications
FAQ
What is the cutting thickness capacity?
The cutting thickness ranges are as follows:
- Marble: 0-120mm
- Granite: 0-110mm
- Tile: 0-40mm
- Glass & Mosaic: 0-80mm
- Steel, Stainless Steel, Copper: 0-60mm
- Aluminum: 0-80mm
- Plastic, Acrylic, Foam: 0-200mm
With our dual-pressure system, it can also cut:
- Steel Plate: 0-160mm
- Stone: 0-200mm
This is a key advantage for customers who need to cut thicker materials.
Does this machine have CE certification?
Yes, this machine is certified to meet European CE safety standards.
Can I see the machine in operation before purchasing?
Absolutely. Contact us, and we can connect you with local customers to arrange a visit to see our equipment running in person.
What materials can a waterjet cut?
Waterjets are extremely versatile and can cut almost any material.
- Soft materials such as foam and rubber are cut with pure water only.
- Hard materials, including titanium, steel, stone, and glass, are cut with an abrasive-mixed water stream.
How to choose the right waterjet machine?
The key factors are the type and thickness of materials you need to cut, the precision you require, and the size of your workspace. Our expert team can help you select the perfect model that fits your specific needs and budget.
